Unique Design
COS-11s features the unique "Vertical Diaphragm Design" which provides superb sound from a microphone so small it is almost invisible. The COS-11s has a perfect OMNI Directional polar pattern from 20Hz to 20kHz, and provides a very natural sound from 50Hz to 20kHz. The frequency response is optimized for recording the human voice.
Versatility
The COS-11s is suitable for a wide range of applications, including musical theatre, TV news studios, ENG, film production recording, outdoor shooting, even live opera and pop music recording, and interfaces with the connectors for any wireless transmitter. The COS-11s comes in three versions: 48v phantom, battery powered (AA battery) which will accept 12V to 52V phantom, and unterminated drivable from 3V to 10V DC.
Color my world
All models are available with the "RED MARK" designation for close microphone positioning and for louder voices, up to 134dB SPL. All models are available in three colors: Gray, Black and Beige. Windscreens are available in 11 colors to fit with a variety of costumes and hairstyles. A wide range of accessories allows for easy microphone positioning.
All you need
Superb Sound in Ultra-miniature Lavalier
• New Rugged 2.1mm
Cable
• Ultra-Miniature Size
• Perfect Omni-Directional Pickup
Pattern From 50Hz to 20kHz
• Unique Vertical Diaphragm Design
•
Excellent Surface Noise Isolation
• Durable Protection from Sweat and
Cosmetics
• Suitable for a Wide Range of Applications
SANKEN COS-11 comes in three versions:
COS-11 for Phantom Powering 48V / COS-11 BP with Battery
Powering
and
COS-11R for use with radio
transmiters
mit Lemo Plug
with Plug for 2011Pigtail Version
For high sound pressure level please order "RM - red mark" .

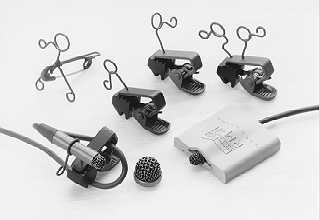

topaccessories for SANKEN COS-11
| HC-11sV | Vertical Tie-pin holder clip (bk/gy/be) |
| HC-11sVV | Tie-pin holder clip/Double(bk/gy/be) |
| HC-11s | Tie-pin holder clip (bk/gy/be) |
| PIN-11s | Holder with safety pin |
| WSL-11 | Large mesh metal windscreen (bk) |
| WS-11 | Mesh metal windscreen (bk/gy/be) |
| RM-11 | Rubber mount for direct setting |
| RM-11C | Rubber mount for direct setting with clip |
| P-11-BP-PT | BP I/F part with cable |
| P-11-PT | P48V I/F part with cable |
| FW-11 | Foam windscreen (11 colors, 1 each) |
Tips and Tricks
specifications
| COS-11 PT | COS-11 BP | COS-11 | |
|---|---|---|---|
| transducer type: | Electret-Kondensator | Electret-Kondensator | Electret-Kondensator |
| Directional Pattern: | omni | omni | omni |
| frequency response: | 20 Hz - 20 kHz +/-2dB | 20 Hz - 20 kHz +/-2dB | 20 Hz - 20 kHz +/-2dB |
| Output Impedance: | ca. 180 Ohm | 700 Ohm | 700 Ohm |
| output level at 1 Pa: | 8.9mV (-41dB) | 6.0mV (-44.5dB) | 17.8mV (-35dB) |
| max. SPL for 1% dist. | 123dB SPL | 120dB SPL | 127dB SPL |
| Dynamic Range: | 95dB | 92dB | 99dB |
| Powering: | 3V bis 10V | 1.5V Battery, 12V-52V Phant. | 48V +/- 4V |
